Online Food Ordering System Architecture

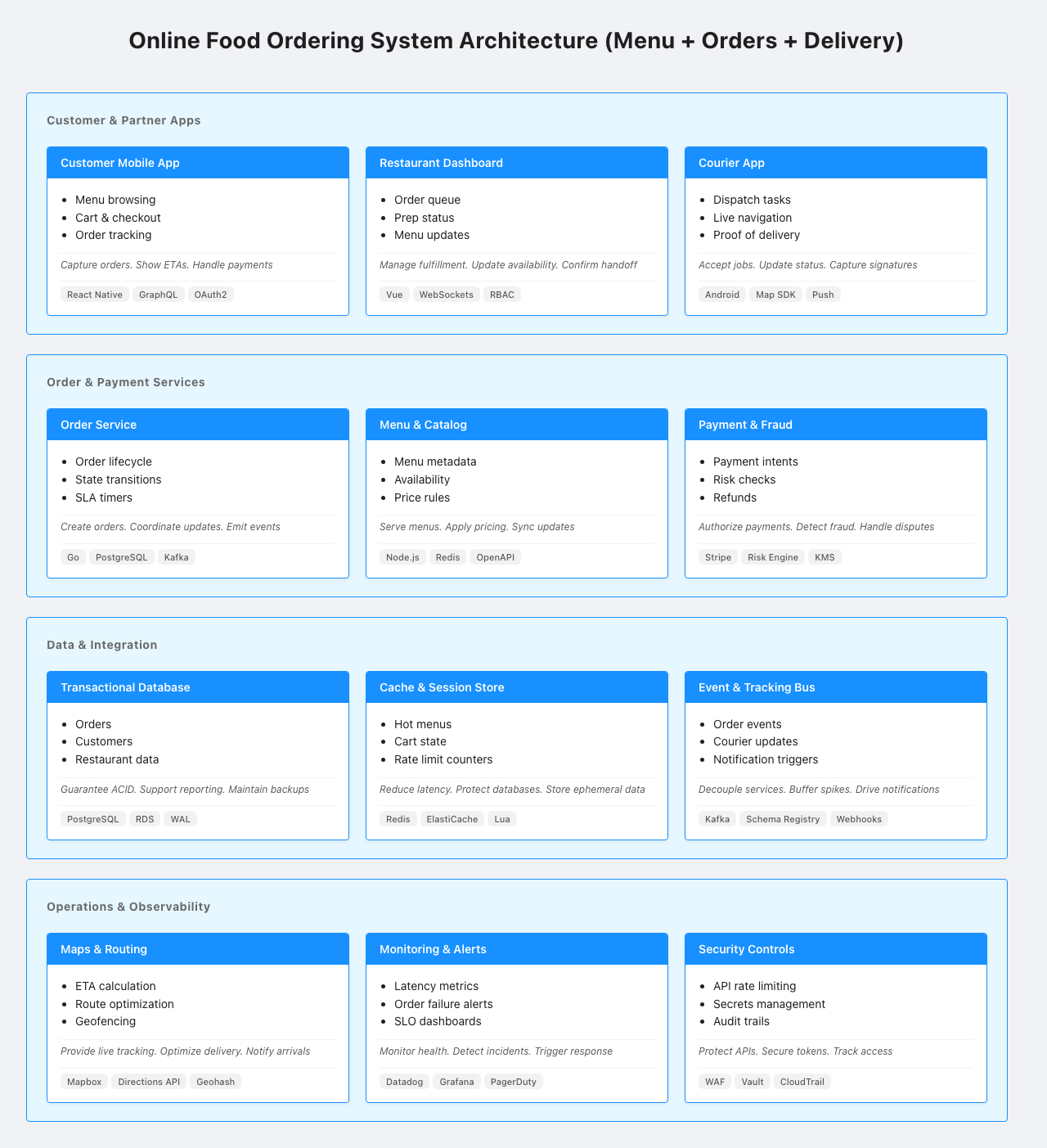

Online Food Ordering System Architecture (Menu + Orders + Delivery) has 4 layers: Customer & Partner Apps, Order & Payment Services, Data & Integration, Operations & Observability.
Key modules include Customer Mobile App, Restaurant Dashboard, Courier App, Order Service, Menu & Catalog.
Key modules
- Customer Mobile App
- Restaurant Dashboard
- Courier App
- Order Service
- Menu & Catalog
- Payment & Fraud
- Transactional Database
- Cache & Session Store
